Transfer to E-Wallet

Process Flow

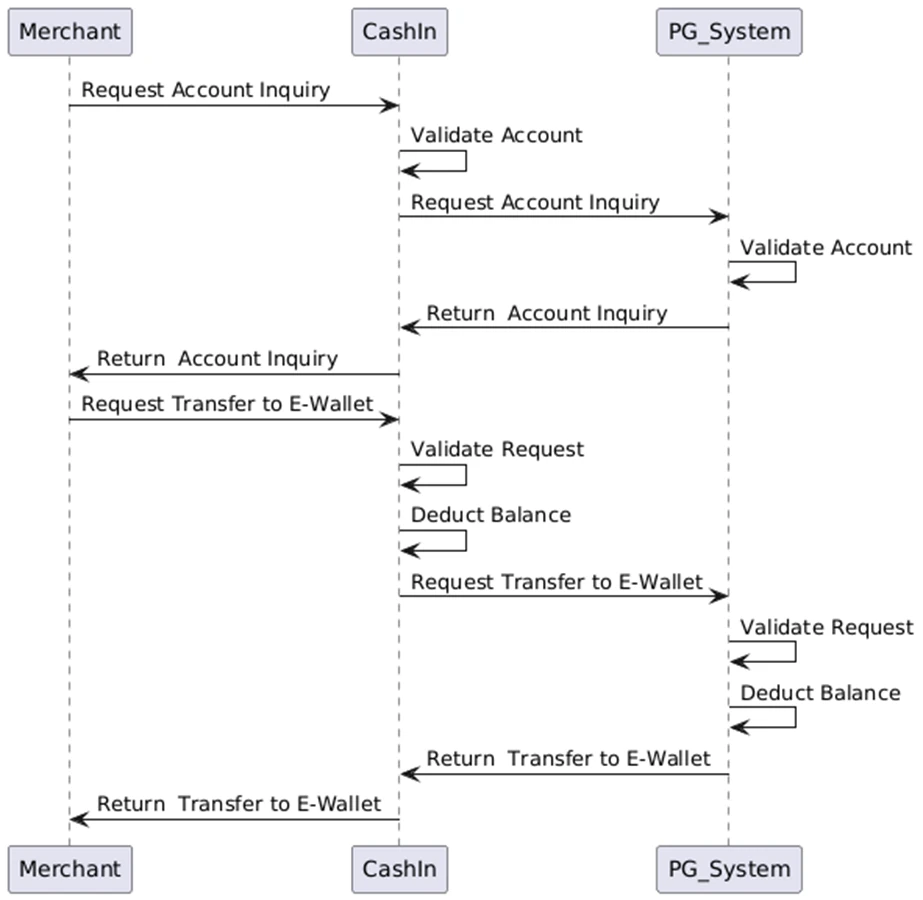

Process Flow Sequence Diagram

Account Inquiry

Service Code: 37

URL

Sandbox

https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/account-inquiry

Production

https://api.cashin.co.id/pg/fo/api/v1.0/emoney/account-inquiry

Relative path url for signature

/api/v1.0/emoney/account-inquiry

Method: POST
Content Type: application/json

Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
2	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request Numeric string	31758165311269888980939441231201
3	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Asymmetric Asymmetric SNAP Method
5	CHANNEL-ID	String	5	Mandatory	Digits	9501

Request Body:

No	Name	Type	Length	Required	Description	Example
1	partnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
2	amount	JSON Object		Mandatory
3	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
4	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
5	customerNumber	String	32	Mandatory	Customer account number, in format 628xxx	6281234567890
6	additionalInfo	JSON Object
7	additionalInfo.channel	String		Mandatory	E-Wallet Provider. Available provider are: TOP_UP_E_WALLET_DANA TRANSFER _E_WALLET_OVO TRANSFER_E_WALLET_GOPAY TRANSFER_E_WALLET_SHOPEEPAY	TOP_UP_E_WALLET_DANA

Response Body:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code	2003700
2	responseMessage	String	150	Mandatory	Response Message	Successful
3	partnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
4	amount	JSON Object		Mandatory
5	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
6	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
7	customerName	String	255	Mandatory	Customer account name	John
8	customerNumber	String	32	Mandatory	Customer account number, in format 628xxx	6281234567890

Response Code:

Code	Description
2003700	Successful
4003701	Invalid field format
4003702	Invalid mandatory field
4013700	Unauthorized [reason]
5003700	Internal server error

Example Request - Account Inquiry
curl --location 'https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/account-inquiry' \
--header 'X-TIMESTAMP: 2024-03-01T14:56:11+07:00' \
--header 'X-PARTNER-ID: CID1234567890' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 9552' \
--header 'Content-Type: application/json' \
--data '{
  "partnerReferenceNo":" REF1234567890",
  "amount":{
    "value":"10000.00",
    "currency":"IDR"
  },
  "customerNumber":"6281234567890",
  "additionalInfo":{
    "channel":"TOP_UP_E_WALLET_DANA"
  }
}'

Example Response - Account Inquiry
{
  "responseCode": "2003700",
  "responseMessage": " Successful ",
  "partnerReferenceNo": "REF1234567890",
  "amount": {
    "value": 10000.00,
    "currency": "IDR"
  },
  "customerName": "John",
  "customerNumber": "6281234567890"
}

Create Transfer

Service Code: 38

URL

Sandbox

https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/topup

Production

https://api.cashin.co.id/pg/fo/api/v1.0/emoney/topup

Relative path url for signature

/api/v1.0/emoney/topup

Method: POST
Content Type: application/json

Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
2	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
3	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request Numeric string	31758165311269888980939441231201
4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Asymmetric Asymmetric SNAP Method
5	CHANNEL-ID	String	5	Mandatory	Digits	9501

Request Body:

No	Name	Type	Length	Required	Description	Example
1	partnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
2	amount	JSON Object		Mandatory
3	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
4	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
5	customerNumber	String	32	Mandatory	Customer account number, in format 628xxx	6281234567890
6	additionalInfo	JSON Object
7	additionalInfo.channel	String		Mandatory	E-Wallet Provider. Available provider are: TOP_UP_E_WALLET_DANA TRANSFER _E_WALLET_OVO TRANSFER_E_WALLET_GOPAY TRANSFER_E_WALLET_SHOPEEPAY	TOP_UP_E_WALLET_DANA

Response Body:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code	2003800
2	responseMessage	String	150	Mandatory	Response Message	Successful
3	partnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
4	amount	JSON Object		Mandatory
5	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
6	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
7	customerNumber	String	32	Mandatory	Customer account number, in format 628xxx	6281234567890

Response Code:

Code	Description
2003800	Successful
2003800	Invalid field format
4003802	Invalid mandatory field
4013800	Unauthorized [reason]
5003800	Internal server error

Example Request - Create Transfer
curl --location 'https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/topup' \
--header 'X-TIMESTAMP: 2024-03-01T14:56:11+07:00' \
--header 'X-PARTNER-ID: CID1234567890' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 9552' \
--header 'Content-Type: application/json' \
--data '{"partnerReferenceNo":" REF1234567890","amount":{"value":"10000.00","currency":"IDR"},"customerNumber":"6281234567890","additionalInfo":{"channel":"TOP_UP_E_WALLET_DANA"}}'

Example Response - Create Transfer
{
  "responseCode": "2003800",
  "responseMessage": " Successful ",
  "partnerReferenceNo": "REF1234567890",
  "amount": {
    "value": 10000.00,
    "currency": "IDR"
  },
  "customerName": "Fulan",
  "customerNumber": "6281234567890"
}

Get Transfer Status

Service Code: 39

URL

Sandbox

https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/topup-status

Production

https://api.cashin.co.id/pg/fo/api/v1.0/emoney/topup-status

Relative path url for signature

/api/v1.0/emoney/topup-status

Method: POST
Content Type: application/json

Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
2	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
3	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request Numeric string	31758165311269888980939441231201
4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Asymmetric Asymmetric SNAP Method
5	CHANNEL-ID	String	5	Mandatory	Digits	9501

Request Body:

No	Name	Type	Length	Required	Description	Example
1	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
2	serviceCode	String	2	Mandatory	Transaction type indicator is based on the service code	38

Response Body:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code	2003900
2	responseMessage	String	150	Mandatory	Response Message	Successful
3	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
4	originalReferenceNo	String	64	Mandatory	Transaction identifier on Cash In System	TF1234567890
5	serviceCode	String	2	Mandatory	Transaction type indicator is based on the service code	38
6	amount	JSON Object		Mandatory
7	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
8	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
9	latestTransactionStatus	String	2	Mandatory	Status of the latest transaction	00
10	latestTransactionDesc	String	50	Mandatory	Description of transaction status	Success

Response Code:

Code	Description
2003900	Successful
2003900	Invalid field format
4003902	Invalid mandatory field
4013900	Unauthorized [reason]
5003900	Internal server error

Example Request - Get Transfer Status
curl --location 'https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/emoney/topup-status' \
--header 'X-TIMESTAMP: 2024-03-01T14:56:11+07:00' \
--header 'X-PARTNER-ID: CID1234567890' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 9552' \
--header 'Content-Type: application/json' \
--data '{"originalPartnerReferenceNo":" REF1234567890","serviceCode":"38"}'

Example Response - Get Transfer Status
{
  "responseCode": "2003900",
  "responseMessage": "Successful",
  "originalPartnerReferenceNo": "REF1234567890",
  "originalReferenceNo": " TF1234567890",
  "serviceCode": "38",
  "amount": {
    "value":10000.00,
    "currency": "IDR"
  },
  "latestTransactionStatus": "00",
  "latestTransactionDesc": "Success"
}
