QRIS

Process Flow

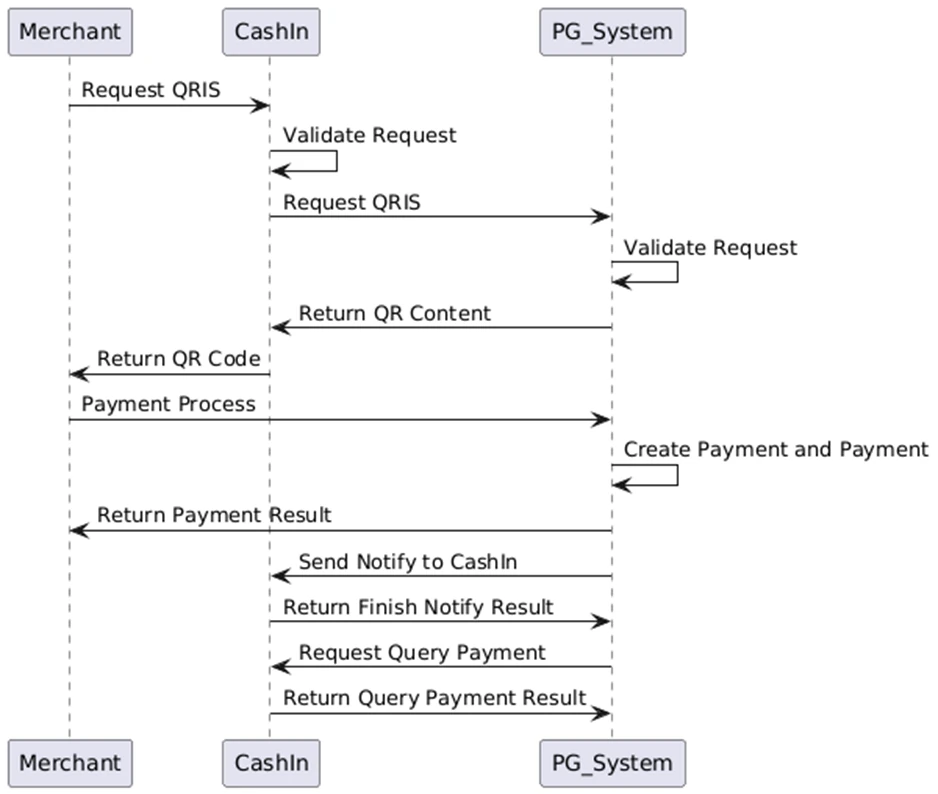

Process Flow Sequence Diagram

Generate QR MPM

Service Code: 47

URL

Sandbox

https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-generate

Production

https://api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-generate

Relative path url for signature

/api/v1.0/qr/qr-mpm-generate

Method: POST
Content Type: application/json

Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
2	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
3	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request Numeric string	31758165311269888980939441231201
4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Asymmetric Asymmetric SNAP Method
5	CHANNEL-ID	String	5	Mandatory	Digits	9501

Request Body:

No	Name	Type	Length	Required	Description	Example
1	partnerReferenceNo	String	25	Mandatory	Transaction identifier on Merchant System	REF1234567890
2	validityPeriod	String	25	Mandatory	The validity period of QR, must be in the format YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
3	amount	JSON Object		Mandatory
4	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
5	amount.currency	String	3	Mandatory	Currency based on ISO	IDR
6	feeAmount	JSON Object		Mandatory
7	feeAmount.value	String	19	Mandatory	Transaction fee, must be ended with .00	0.00
8	feeAmount.currency	String	3	Mandatory	Currency based on ISO	IDR

Response Body:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code	2004700
2	responseMessage	String	150	Mandatory	Response Message	Successful
3	partnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
4	referenceNo	String	64	Mandatory	Transaction identified on Cash In System	PAY1234567890
5	qrContent	String	512	Mandatory	QR String MPM

Response Code:

Code	Description
2004700	Successful
4004701	Invalid field format
4004702	Invalid mandatory field
4014700	Unauthorized [reason]
5004700	Internal server error

Example Request - QRIS MPM
curl --location 'https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-generate' \
--header 'X-TIMESTAMP: 2024-03-01T14:56:11+07:00' \
--header 'X-PARTNER-ID: CID1234567890' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 9552' \
--header 'Content-Type: application/json' \
--data '{
"partnerReferenceNo":"REF1234567890",
"validityPeriod":"2024-03-01T15:16:11+07:00",
"amount":{
  "value":"10000.00",
  "currency":"IDR"
},
"feeAmount":{
  "value":"0.00",
  "currency":"IDR"
  }
}'

Example Response - QRIS MPM
{
  "responseCode": "2004700",
  "responseMessage": "Successful",
  "partnerReferenceNo": "REF1234567890",
  "referenceNo": "PAY1234567890",
  "qrContent": "”
}

Query Payment

Service Code: 51

URL

Sandbox

https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-query

Production

https://api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-query

Relative path url for signature

/api/v1.0/qr/qr-mpm-query

Method: POST
Content Type: application/json

Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
2	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
3	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request Numeric string	31758165311269888980939441231201
4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Asymmetric Asymmetric SNAP Method
5	CHANNEL-ID	String	5	Mandatory	Digits	9501

Request Body:

No	Name	Type	Length	Required	Description	Example
1	merchantId	String		Mandatory	Identifier id merchant generated by Cash In	MCH1234567890
2	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
3	serviceCode	String	2	Mandatory	Transaction type indicator is based on the service code	47

Response Body:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code	2005100
2	responseMessage	String	150	Mandatory	Response Message	Successful
3	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Merchant System	REF1234567890
4	originalReferenceNo	String	64	Mandatory	Transaction identifier on Cash In System	PAY1234567890
5	serviceCode	String	2	Mandatory	Transaction type indicator is based on the service code	47
6	latestTransactionStatus	String	2	Mandatory	Status of the latest transaction	00
7	latestTransactionDesc	String	2	Mandatory	Description of transaction status	Success
8	paidTime	String	25	Mandatory	Transaction paid date, format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-03-01T14:56:11+07:00
9	amount	JSON Object		Mandatory
10	amount.value	String	19	Mandatory	Transaction amount, must be ended with .00	10000.00
11	amount.currency	String	3	Mandatory	Currency based on ISO	IDR

Response Code:

Code	Description
2005100	Successful
4005101	Invalid field format
4005102	Invalid mandatory field
4015100	Unauthorized [reason]
5005100	Internal server error

Example Request - Query Payment
curl --location 'https://sandbox-api.cashin.co.id/pg/fo/api/v1.0/qr/qr-mpm-generate' \
--header 'X-TIMESTAMP: 2024-03-01T14:56:11+07:00' \
--header 'X-PARTNER-ID: CID1234567890' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 95051' \
--header 'Content-Type: application/json' \
--data '{"merchantId":"MCH1234567890","originalPartnerReferenceNo":"REF1234567890","serviceCode":"47"}'

Example Response - Query Payment
{
  "responseCode": "2005100",
  "responseMessage": "Successful",
  "originalPartnerReferenceNo": "REF1234567890",
  "originalReferenceNo": "PAY1234567890",
  "serviceCode": "47 ",
  "latestTransactionStatus": "00",
  "latestTransactionDesc": "Success",
  "paidTime": "2024-03-01T14:56:11+07:00",
  "amount": {
    "value": 10000.00,
    "currency": "IDR"
  }
}

API Acknowledge Payment (Notify Callback)

QRIS & Direct Debit (Snap Api Version)

The parameters provided by Cash In for This integration are:
- clientId
- publicKey

URL :

https://{your_domain}/v1.0/debit/notify

Relative path url for signature

https://{your_domain}/v1.0/debit/notify

Method: POST
Content Type: application/json
Request Header:

No	Name	Type	Length	Required	Description	Example
1	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
2	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
3	X-TIMESTAMP		25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)
4	X-SIGNATURE	String		Mandatory	Signature generated using Asymmetric Method
5	CHANNEL -ID	String		Mandatory

Request Body:

No	Name	Type	Length	Required	Description	Example
1	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Cash In System	CID12345678910
2	originalReferenceNo	String	64	Mandatory	Transaction identifier on partner (merchant) system	3fa85f64-5717-4562-b3fc-2c963f66afa6
3	originalExternalId	Number	36	Optional	Unique Identifier request must be unique each request
4	latestTransactionStatus	String	2	Mandatory	Category code for the status of the payment. The values include: • 00 = Success, the payment has been paid • 05 = Cancelled, the payment has been closed because it is expired
5	transactionStatusDesc	String	50	Mandatory	description of transaction status
6	amount	JSON Object		Mandatory
7	amount.value	String		Mandatory	Amount Value
8	amount.currency	String	25	Mandatory	Amount Currency
9	createdTime	String	25	Mandatory	Transaction created time format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)
10	finishedTime	String	25	Mandatory	Transaction finished time format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)

Response:

No	Name	Type	Length	Required	Description	Example
1	responseCode	String	7	Mandatory	Response Code
2	responseMessage	String	150	Mandatory	Response Message

Example Request - API Notify for Acknowledge Payment
curl --location --request POST 'https://{your_domain}/v1.0/debit/notify \
--header 'X-PARTNER-ID: CID17304190397339244f' \
--header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
--header 'X-TIMESTAMP: 2024-11-04T10:00:00+07:00' \
--header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
--header 'CHANNEL-ID: 9552'\
--header 'Content-Type: application/json' \
--data-raw '{
  "originalPartnerReferenceNo": "PAY12345678910",
  "originalReferenceNo": "TRX-MERCHANT-0001",
  “orgiginalExternalId” : “123232144”,
  "latestTransactionStatus": “00”,
  “latestTransactionStatusDec”: “Success”,
  "amount": {
       “value”: 1000,
        “currency”: “IDR”
  },
  "createdTime": "2024-11-04T10:00:00+07:00”,
  "finishedTime": "2024-11-04T10:00:00+07:00"
}'

Example Response - API Notify for Acknowledge Payment
{
    "responseCode": “2005600”,
    "responseMessage": "Successful”
}
