Integeration Guide

Overview

This service provides a payment page to the merchant’s system after a checkout transaction. The merchant requests a payment link from Cash In, and the payment page is displayed to the merchant’s customer. After the customer completes the payment, Cash In will notify the merchant that the payment has been successfully processed. A detailed explanation of the process flow is provided in the Sequence Diagram:

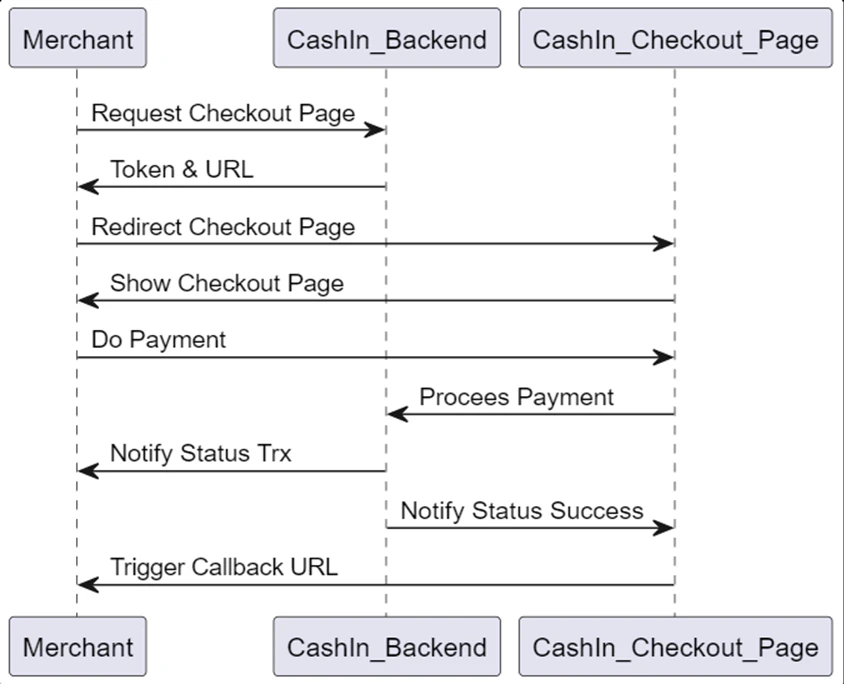

Process Flow Sequence Diagram

Backend Integration Process

To utilize the checkout page, the merchant must implement the following APIs:

• API Request URL Checkout Page
• API Check Status Payment
• API Notify for Acknowledge Payment

API Request URL Checkout Page

• The parameters provided by Cash In for This integration are:

  • clientId
  • secretKey

• URL

  Sandbox

  https://sandbox-api.cashin.co.id/pg/fo/payment
  Production

  https://api.cashin.co.id/pg/fo/payment
  Relative path url for signature

  /payment

• Method: POST

• Content Type: application/json

• Request Header:

  No	Name	Type	Length	Required	Description	Example
  1	X-CLIENT-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
  2	X-REQUEST-ID	String	36	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
  3	X-TIMESTAMP	String	25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)	2024-11-04T10:00:00+07:00
  4	X-SIGNATURE	String	Variable	Mandatory	Signature generated using Symmetric Method

• Request Body:

  No	Name	Type	Length	Required	Description	Example
  1	amount	Number		Mandatory	Identifier id client	CID12345678910
  2	trxNo	String	64	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
  3	duration	Number		Mandatory	Duration expired for checkout page in minutes
  4	successCallbackUrl	String	255	Mandatory	Page redirect of success payment in checkout page
  5	cancelCallbackUrl	String	255	Mandatory	Page redirect of cancel or back in checkout page
  6	paymentChannel	String	50	String	for directly select payment channel, if value not blank or null then result url checkout page direct to specific payment channel. value available : QRIS BANK_TRANSFER	QRIS
  7	customer	JSON Object		Mandatory
  8	customer.id	String	50	Mandatory	Customer id of merchant system
  9	customer.phoneNumber	String	16	Mandatory	Customer phone of merchant system

• Response:

  No	Name	Type	Length	Required	Description	Example
  1	message	String	20	Mandatory	Message response
  2	data	JSON Object		Mandatory
  3	data.paymentToken	String	150	Mandatory	Token for Checkout page access
  4	data.paymentUrl	String	255	Mandatory	URL for open Checkout Page

  Example Request - API Request URL Checkout Page

  curl --location --request POST 'https://sandbox-api.cashin.co.id/pg/fo/payment' \
  --header 'X-CLIENT-ID: CID1234567890' \
  --header 'X-REQUEST-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
  --header 'X-TIMESTAMP: 2024-11-04T10:00:00+07:00' \
  --header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
  --header 'Content-Type: application/json' \
  --data-raw '{
    "amount": 1000,
    "trxNo": "TRX-MERCHANT-0001",
    "duration": 30,
    "successCallbackUrl": "https://tes-url-merchant.com/success",
    "cancelCallbackUrl": "https://tes-url-merchant.com/cancel",
   “paymentChannel” : “QRIS”,
    "customer": {
      "id": "CUSTOMER-1",
      "phoneNumber": "082232232231111"
    }
  }'
  Example Response - API Request URL Checkout Page

  {
      "paymentToken": "Y2ExMTRjNjAtMzBjNy00MDA5LThiYjctOWI2NTI2Yzg0OGI3XzAxOTJmNTljLWM1MTMtNzQ0Mi04MmRmLTM5ZTYzMzQ1NGE4OV8yMDI0LTExLTExVDAzOjU5OjQ2LjQ5MzY2NjQ5OVo=",
      "paymentUrl": https://dev-checkout.cashin.co.id/payment/Y2ExMTRjNjAtMzBjNy00MDA5LThiYjctOWI2NTI2Yzg0OGI3XzAxOTJmNTljLWM1MTMtNzQ0Mi04MmRmLTM5ZTYzMzQ1NGE4OV8yMDI0LTExLTExVDAzOjU5OjQ2LjQ5MzY2NjQ5OVo="
  }

API Status Payment (Checkout Page)

• The parameters provided by Cash In for This integration are:

  • clientId
  • publicKey

• URL :

  Sandbox

  https://sandbox-api.cashin.co.id/pg/fo/payment/status
  Production

  https://api.cashin.co.id/pg/fo/payment/status
  Relative path url for signature

  /payment/status

• Method: POST

• Content Type: application/json

• Request Header:

  No	Name	Type	Length	Required	Description	Example
  1	X-CLIENT-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
  2	X-REQUEST-ID	String	36	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
  3	X-TIMESTAMP		25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)
  4	X-SIGNATURE	String		Mandatory	Signature generated using Symmetric Method

• Request Body:

  No	Name	Type	Length	Required	Description	Example
  1	trxNo	String	20	Mandatory	Transaction number of merchant	TRX001

• Response:

  No	Name	Type	Length	Required	Description	Example
  1	message	String	20	Mandatory	Message response	Sucessfull
  2	data	JSON Object		Mandatory
  3	data.trxNo	JSON Object	150	Mandatory	Transaction Number identifier of Merchant	TRX001
  4	data.status	JSON Object	30	Mandatory	Status payment : 1. SUCCESS (Success) 2. OPEN (Ready to be paid) 3. FAILED (Failed)	SUCCESS
  5	data.paymentMethod	String	30	Mandatory	Payment method	QRIS
  6	data.referenceNo	String	40	Mandatory	Transaction Number identifier of Cash In	PAY123
  7	data.amount	Number		Mandatory	Amount transaction	4000.00

  Example Request - Status Payment

  curl --location --request POST 'https://sandbox-api.cashin.co.id/pg/fo/payment/status' \
  --header 'X-CLIENT-ID: CID173701069947375062' \
  --header 'X-REQUEST-ID: 123' \
  --header 'X-TIMESTAMP: 2025-04-11T10:42:53.352+07:00' \
  --header 'X-SIGNATURE: 2LxrHCEHWj/j7rE2ZNMEs7sq7Nsd0KPkH8J6ZucPTlM=' \
  --header 'Content-Type: application/json' \
  --data-raw '{
      "trxNo": " TRX001"
  }'
  Example Response - Status Payment

  {
    "message": "Successful",
    "data": {
      "trxNo": "TRX001",
      "status": "SUCCESS",
      "paymentMethod": "QRIS ",
      "referenceNo": "PAY123",
      "amount": 4000.00
    }
  }

API Acknowledge Payment (Notify Callback)

QRIS & Direct Debit (Snap Api Version)

• The parameters provided by Cash In for This integration are:

  • clientId
  • publicKey

• URL :

  https://{your_domain}/v1.0/debit/notify
  Relative path url for signature

  https://{your_domain}/v1.0/debit/notify

• Method: POST

• Content Type: application/json

• Request Header:

  No	Name	Type	Length	Required	Description	Example
  1	X-PARTNER-ID	String	36	Mandatory	Identifier id client generated by Cash In	CID12345678910
  2	X-EXTERNAL-ID	String	36	Mandatory	Unique Identifier request must be unique each request	3fa85f64-5717-4562-b3fc-2c963f66afa6
  3	X-TIMESTAMP		25	Mandatory	Transaction date format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)
  4	X-SIGNATURE	String		Mandatory	Signature generated using Asymmetric Method
  5	CHANNEL -ID	String		Mandatory

• Request Body:

  No	Name	Type	Length	Required	Description	Example
  1	originalPartnerReferenceNo	String	64	Mandatory	Transaction identifier on Cash In System	CID12345678910
  2	originalReferenceNo	String	64	Mandatory	Transaction identifier on partner (merchant) system	3fa85f64-5717-4562-b3fc-2c963f66afa6
  3	originalExternalId	Number	36	Optional	Unique Identifier request must be unique each request
  4	latestTransactionStatus	String	2	Mandatory	Category code for the status of the payment. The values include: • 00 = Success, the payment has been paid • 05 = Cancelled, the payment has been closed because it is expired
  5	transactionStatusDesc	String	50	Mandatory	description of transaction status
  6	amount	JSON Object		Mandatory
  7	amount.value	String		Mandatory	Amount Value
  8	amount.currency	String	25	Mandatory	Amount Currency
  9	createdTime	String	25	Mandatory	Transaction created time format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)
  10	finishedTime	String	25	Mandatory	Transaction finished time format in YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time)

• Response:

  No	Name	Type	Length	Required	Description	Example
  1	responseCode	String	7	Mandatory	Response Code
  2	responseMessage	String	150	Mandatory	Response Message

  Example Request - API Notify for Acknowledge Payment

  curl --location --request POST 'https://{your_domain}/v1.0/debit/notify \
  --header 'X-PARTNER-ID: CID17304190397339244f' \
  --header 'X-EXTERNAL-ID: 3fa85f64-5717-4562-b3fc-2c963f66afa6' \
  --header 'X-TIMESTAMP: 2024-11-04T10:00:00+07:00' \
  --header 'X-SIGNATURE: 1iND8TUKOnGvH4TIFsQB5cCvtYyQKvJrmdpqjgQaLLLiHXdmWsVX8SAnmdq7dWWeKtfl1SKovegk9nwCmjXFHg==' \
  --header 'CHANNEL-ID: 9552'\
  --header 'Content-Type: application/json' \
  --data-raw '{
    "originalPartnerReferenceNo": "PAY12345678910",
    "originalReferenceNo": "TRX-MERCHANT-0001",
    “orgiginalExternalId” : “123232144”,
    "latestTransactionStatus": “00”,
    “latestTransactionStatusDec”: “Success”,
    "amount": {
         “value”: 1000,
          “currency”: “IDR”
    },
    "createdTime": "2024-11-04T10:00:00+07:00”,
    "finishedTime": "2024-11-04T10:00:00+07:00"
  }'
  Example Response - API Notify for Acknowledge Payment

  {
      "responseCode": “2005600”,
      "responseMessage": "Successful”
  }
